Parse RDF File
[1]:
from magellantools import ARCDR
import pprint
import matplotlib.pyplot as plt
Download example RDF file and label
[2]:
!wget -nc https://pds-geosciences.wustl.edu/mgn/mgn-v-rdrs-5-cdr-alt-rad-v1/mg_2008/17611780/rdf01761.lbl
!wget -nc https://pds-geosciences.wustl.edu/mgn/mgn-v-rdrs-5-cdr-alt-rad-v1/mg_2008/17611780/rdf01761.1
--2023-05-12 12:23:38-- https://pds-geosciences.wustl.edu/mgn/mgn-v-rdrs-5-cdr-alt-rad-v1/mg_2008/17611780/rdf01761.lbl
Resolving pds-geosciences.wustl.edu (pds-geosciences.wustl.edu)... 128.252.144.141
Connecting to pds-geosciences.wustl.edu (pds-geosciences.wustl.edu)|128.252.144.141|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 2800 (2.7K) [text/plain]
Saving to: ‘rdf01761.lbl’
rdf01761.lbl 100%[===================>] 2.73K --.-KB/s in 0s
2023-05-12 12:23:39 (566 MB/s) - ‘rdf01761.lbl’ saved [2800/2800]
--2023-05-12 12:23:39-- https://pds-geosciences.wustl.edu/mgn/mgn-v-rdrs-5-cdr-alt-rad-v1/mg_2008/17611780/rdf01761.1
Resolving pds-geosciences.wustl.edu (pds-geosciences.wustl.edu)... 128.252.144.141
Connecting to pds-geosciences.wustl.edu (pds-geosciences.wustl.edu)|128.252.144.141|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 682500 (667K) [application/octet-stream]
Saving to: ‘rdf01761.1’
rdf01761.1 100%[===================>] 666.50K 2.27MB/s in 0.3s
2023-05-12 12:23:39 (2.27 MB/s) - ‘rdf01761.1’ saved [682500/682500]
Open with magellantools
[3]:
hdr, mask, rdf = ARCDR.readARCDR("./rdf01761.lbl")
# Apply nodata mask
rdf = rdf[mask]
Examine output
Header fields
[4]:
pprint.pprint(hdr)
{'CCSD1R00000300000076DELIMITER': 'SMARKER',
'CCSD1Z00000100000454NJPL1K00KL0000000338PRODUCT_FILE_NAME': 'RDF01761.1',
'DATA_FORMAT_TYPE': 'VAX ',
'HARDWARE_VERSION_ID': '01',
'MISSION_ID': '4',
'MISSION_NAME': 'MAGELLAN',
'NAV_UNIQUE_ID': '"ID ',
'ORBIT_NUMBER': '01761',
'PROCESS_TIME': '1991-08-29T17:00:05.000',
'PRODUCT_NAME': 'RADIOMETRY_DATA_RECORD',
'PRODUCT_TYPE': 'RADIOMETRY_FILE',
'SOFTWARE_VERSION_ID': '02',
'SPACECRAFT_ID': '18',
'SPACECRAFT_NAME': 'MAGELLAN',
'TYPE': 'NJPL1I000177 ',
'UPLOAD_ID': 'M1079Q'}
Data file fields
[5]:
pprint.pprint(rdf.dtype.names)
('SFDU_LABEL_AND_LENGTH',
'RAD_NUMBER',
'RAD_FLAG_GROUP',
'RAD_FLAG2_GROUP',
'RAD_SPACECRAFT_EPOCH_TDB_TIME',
'RAD_SPACECRAFT_POSITION_VECTOR',
'RAD_SPACECRAFT_VELOCITY_VECTOR',
'RAD_FOOTPRINT_LONGITUDE',
'RAD_FOOTPRINT_LATITUDE',
'RAD_ALONG_TRACK_FOOTPRINT_SIZE',
'RAD_CROSS_TRACK_FOOTPRINT_SIZE',
'SAR_FOOTPRINT_SIZE',
'SAR_AVERAGE_BACKSCATTER',
'INCIDENCE_ANGLE',
'BRIGHTNESS_TEMPERATURE',
'AVERAGE_PLANETARY_RADIUS',
'PLANET_READING_SYSTEM_TEMP',
'ASSUMED_WARM_SKY_TEMPERATURE',
'RAD_RECEIVER_SYSTEM_TEMP',
'SURFACE_EMISSION_TEMPERATURE',
'SURFACE_EMISSIVITY',
'RAD_PARTIALS_GROUP',
'RAD_EMISSIVITY_PARTIAL',
'SURFACE_TEMPERATURE',
'RAW_RAD_ANTENNA_POWER',
'RAW_RAD_LOAD_POWER',
'ALT_SKIP_FACTOR',
'ALT_GAIN_FACTOR',
'ALT_COARSE_RESOLUTION',
'SPARE')

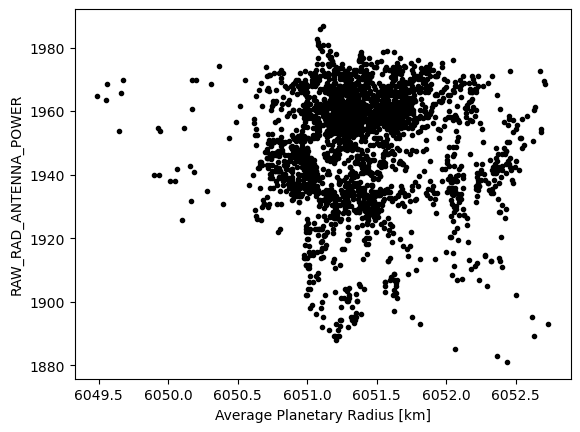

Plot planetary radius vs radiometer antenna power
[6]:
plt.plot(rdf["AVERAGE_PLANETARY_RADIUS"], rdf["RAW_RAD_ANTENNA_POWER"], 'k.')
plt.xlabel("Average Planetary Radius [km]")
plt.ylabel("RAW_RAD_ANTENNA_POWER")
plt.show()

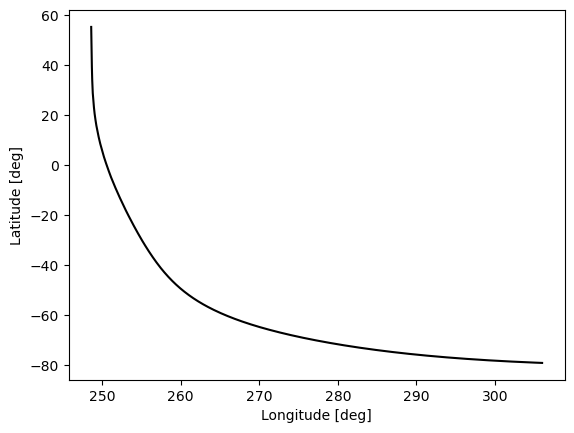

Plot ground track
[7]:
plt.plot(rdf["RAD_FOOTPRINT_LONGITUDE"], rdf["RAD_FOOTPRINT_LATITUDE"] , 'k')
plt.xlabel("Longitude [deg]")
plt.ylabel("Latitude [deg]")
plt.show()
