Parse ADF File
[1]:
from magellantools import ARCDR
import pprint
import matplotlib.pyplot as plt
Download example ADF file and label
[2]:
!wget -nc https://pds-geosciences.wustl.edu/mgn/mgn-v-rdrs-5-cdr-alt-rad-v1/mg_2008/17611780/adf01761.lbl
!wget -nc https://pds-geosciences.wustl.edu/mgn/mgn-v-rdrs-5-cdr-alt-rad-v1/mg_2008/17611780/adf01761.1
--2023-05-12 12:23:51-- https://pds-geosciences.wustl.edu/mgn/mgn-v-rdrs-5-cdr-alt-rad-v1/mg_2008/17611780/adf01761.lbl
Resolving pds-geosciences.wustl.edu (pds-geosciences.wustl.edu)... 128.252.144.141
Connecting to pds-geosciences.wustl.edu (pds-geosciences.wustl.edu)|128.252.144.141|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 2800 (2.7K) [text/plain]
Saving to: ‘adf01761.lbl’
adf01761.lbl 100%[===================>] 2.73K --.-KB/s in 0s
2023-05-12 12:23:51 (514 MB/s) - ‘adf01761.lbl’ saved [2800/2800]
--2023-05-12 12:23:51-- https://pds-geosciences.wustl.edu/mgn/mgn-v-rdrs-5-cdr-alt-rad-v1/mg_2008/17611780/adf01761.1
Resolving pds-geosciences.wustl.edu (pds-geosciences.wustl.edu)... 128.252.144.141
Connecting to pds-geosciences.wustl.edu (pds-geosciences.wustl.edu)|128.252.144.141|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1657500 (1.6M) [application/octet-stream]
Saving to: ‘adf01761.1’
adf01761.1 100%[===================>] 1.58M 4.12MB/s in 0.4s
2023-05-12 12:23:52 (4.12 MB/s) - ‘adf01761.1’ saved [1657500/1657500]
Open with magellantools
[3]:
hdr, mask, adf = ARCDR.readARCDR("./adf01761.lbl")
# Apply nodata mask
adf = adf[mask]
Examine output
Header fields
[4]:
pprint.pprint(hdr)
{'CCSD1R00000300000074DELIMITER': 'SMARKER',
'CCSD1Z00000100000480NJPL1K00KL0000000366PRODUCT_FILE_NAME': 'ADF01761.1',
'DATA_FORMAT_TYPE': 'VAX ',
'HARDWARE_VERSION_ID': '01',
'MISSION_ID': '4',
'MISSION_NAME': 'MAGELLAN',
'NAV_UNIQUE_ID': '"ID ',
'ORBIT_NUMBER': '01761',
'PROCESS_TIME': '1991-08-30T08:25:58.000',
'PRODUCT_NAME': 'ALTIMETRY_DATA_RECORD',
'PRODUCT_TYPE': 'ALTIMETRY_FILE',
'SOFTWARE_VERSION_ID': '02',
'SPACECRAFT_ID': '18',
'SPACECRAFT_NAME': 'MAGELLAN',
'TEMPLATE_VERSION_NUMBER': '02',
'TYPE': 'NJPL1I000177',
'UPLOAD_ID': 'M1079Q'}
Data file fields
[5]:
pprint.pprint(adf.dtype.names)
('SFDU_LABEL_AND_LENGTH',
'FOOTPRINT_NUMBER',
'ALT_FLAG_GROUP',
'ALT_FLAG2_GROUP',
'ALTIMETRY_FOOTPRINT_TDB_TIME',
'ALT_SPACECRAFT_POSITION_VECTOR',
'ALT_SPACECRAFT_VELOCITY_VECTOR',
'ALT_FOOTPRINT_LONGITUDE',
'ALT_FOOTPRINT_LATITUDE',
'ALT_ALONG_TRACK_FOOTPRINT_SIZE',
'ALT_CROSS_TRACK_FOOTPRINT_SIZE',
'RECEIVER_NOISE_CALIBRATION',
'UNCORRECTED_DISTANCE_TO_NADIR',
'ATMOS_CORRECTION_TO_DISTANCE',
'DERIVED_PLANETARY_RADIUS',
'RADAR_DERIVED_SURF_ROUGHNESS',
'DERIVED_FRESNEL_REFLECTIVITY',
'DERIVED_FRESNEL_REFLECT_CORR',
'FORMAL_ERRORS_GROUP',
'FORMAL_CORRELATIONS_GROUP',
'EPHEMERIS_RADIUS_CORRECTION',
'EPHEMERIS_LONGITUDE_CORRECTION',
'EPHEMERIS_LATITUDE_CORRECTION',
'ALT_PARTIALS_GROUP',
'NON_RANGE_SHARP_FIT',
'SCALING_FACTOR',
'NON_RANGE_SHARP_LOOKS',
'NON_RANGE_PROF_CORRS_INDEX',
'NON_RANGE_SHARP_ECHO_PROF',
'BEST_NON_RANGE_SHARP_MODEL_TPT',
'RANGE_SHARP_FIT',
'RANGE_SHARP_SCALING_FACTOR',
'RANGE_SHARP_LOOKS',
'RANGE_SHARP_PROF_CORRS_INDEX',
'RANGE_SHARP_ECHO_PROFILE',
'BEST_RANGE_SHARP_MODEL_TMPLT',
'MULT_PEAK_FRESNEL_REFLECT_CORR',
'DERIVED_PLANETARY_THRESH_RADI',
'SIGNAL_QUALITY_INDICATOR',
'DERIVED_THRESH_DETECTOR_INDEX',
'SPARE')

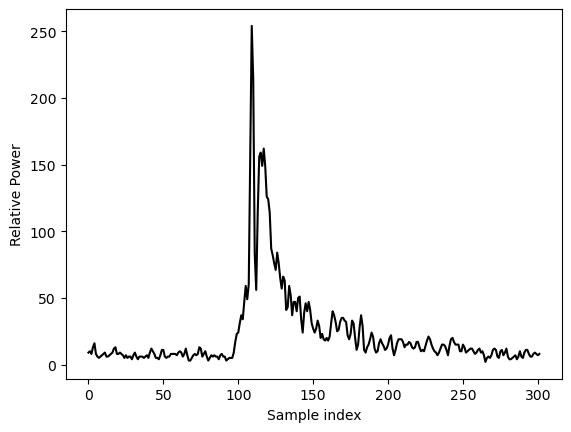

Plot first non range-sharpened echo profile in file
[6]:
plt.plot(adf["NON_RANGE_SHARP_ECHO_PROF"][0], 'k')
plt.xlabel("Sample index")
plt.ylabel("Relative Power")
plt.show()

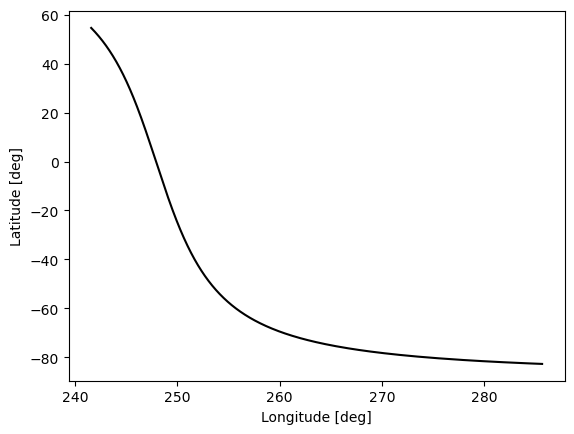

Plot ground track
[7]:
plt.plot(adf["ALT_FOOTPRINT_LONGITUDE"], adf["ALT_FOOTPRINT_LATITUDE"] , 'k')
plt.xlabel("Longitude [deg]")
plt.ylabel("Latitude [deg]")
plt.show()
